Beginner's Guide to Home Wiring Diagram

A home wiring diagram is a visual representation of the electrical system or circuit in a house. This article is an ultimate tutorial for home wiring diagram.

What Is Home Wiring Diagram?

Understanding diagram for home wiring is important for installing domestic wiring system. It works as a design blueprint and it shows how the wires are connected and where the outlets should be located as well as the actual connections between the electrical components. Diagrams for home wiring can assist in building the circuit and electrical system.

The picture below shows what a common home wiring diagram looks like:

Standard Home Wiring Diagram Symbols

Edraw floor plan maker, as a professional wiring diagram software, contains a large range of wiring plan symbols that used on wiring diagrams, such as switches, lightings, and light bars. Most symbols look like the real objects they represent. So it would not be hard to find the right one needed.

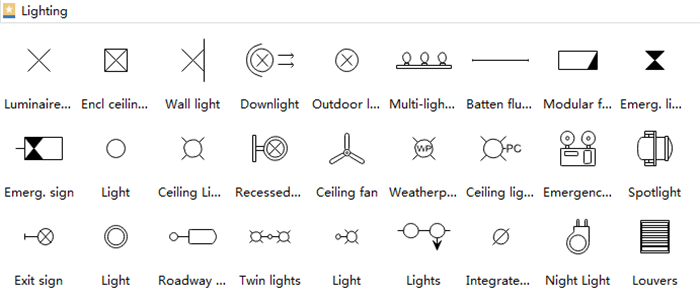

Lighting

Electrical and Telecom

How to Create Home Wiring Diagram

Edraw makes creating a home wiring diagram a snap! This home wiring diagram maker can help create accurate diagrams for your house with a large amount of electrical and lighting symbols. In addition, it allows you to customize your own design for the home wiring layout.

Basic Steps to Create a Diagram for Home Wiring

1. Follow the instruction and open a new wiring diagram drawing page: Available Templates - Floor Plan - Electrical and Telecom Plan. Double click, and you can begin to design your own diagram,

2. Add Symbols and Appliances: drag and drop the symbols required for your home wiring diagram. If you need additional symbols, click on the "Libraries" icon to see more libraries. You can open any related libraries if needed.

3. Connect the Symbols: connect the symbols to complete the wiring diagram, you have two ways to do this:

4. Save and Export: once completed the design of your home wiring diagram, save the file or export it as other formats if necessary.

Example for Home Wiring Diagram

Here is an example for home wiring diagrams for your reference. Click on the image and you can download it for free!

Template for Home Wiring Plan
